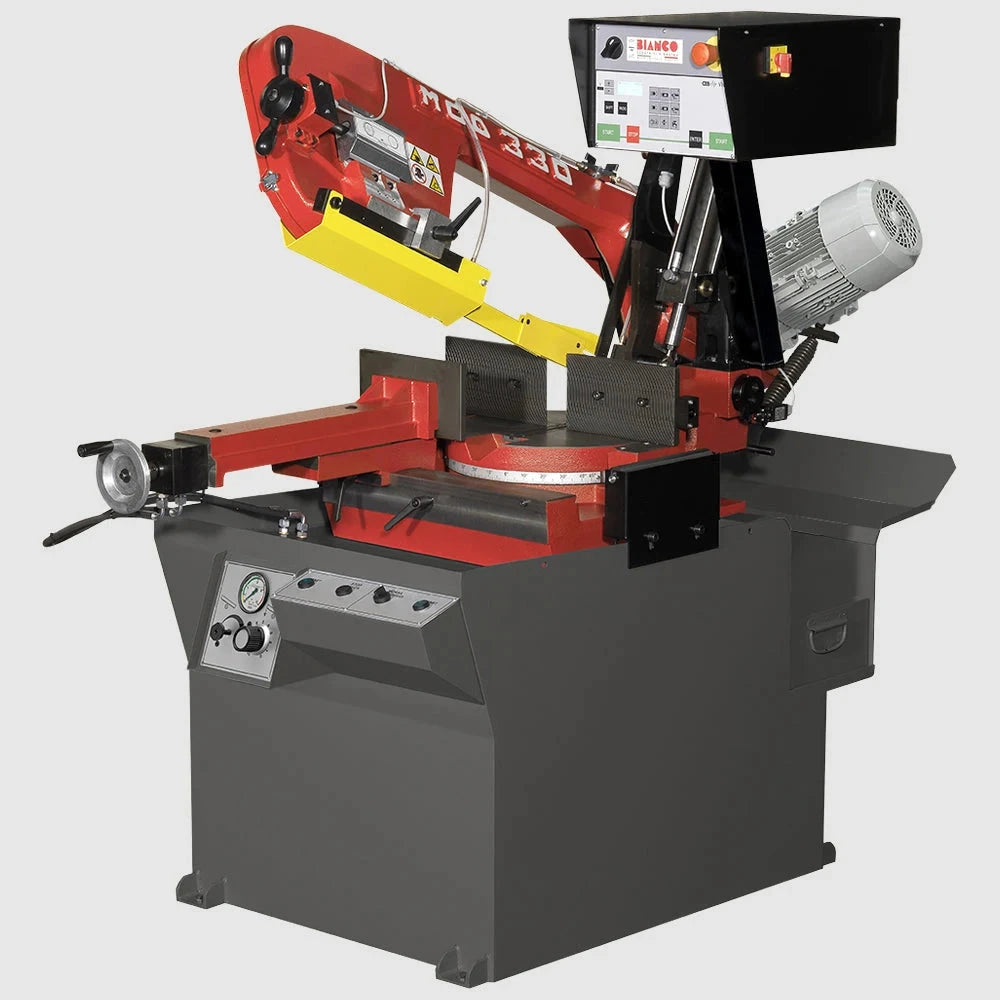

BIANCO 330 SA R BANDSAW MACHINE
SKU:
Semiautomatic band saw machine with cutting capacities up to 60° right and 45° left
Semiautomatic band saw machine equipped with bow and vice movement at hydraulic control, automatic fast up/down bow movement controlled by feeler pin and cutting progress with infinitesimal adjustment. The machine has double safety button for cycle start and low voltage electrical system according to EC rules.
FEATURES
- Manual vice positioning, according to the cutting angle
- Cutting group movement on big dimensions slewing ring. Graduated scale located on the front side of the machine for a quick reading of the cutting angle
- Cutting capacities up to 60° right and 45° left
- Bow: red RAL 3002, base: gray RAL 7022
STANDARD ACCESSORIES
- Millimetre rule 0-500 mm with mechanical length stop
- Infeed and outfeed roller
- Cleaning brush
90° mm | 250 | 240 | 270x200 |
45° DX-R mm | 180 | 170 | 170x200 |
45° SX-L mm | 140 | 130 | 140x110 |
60° DX-R mm | 110 | 110 | 110x170 |
Blade | 3010x27x0.9 |
