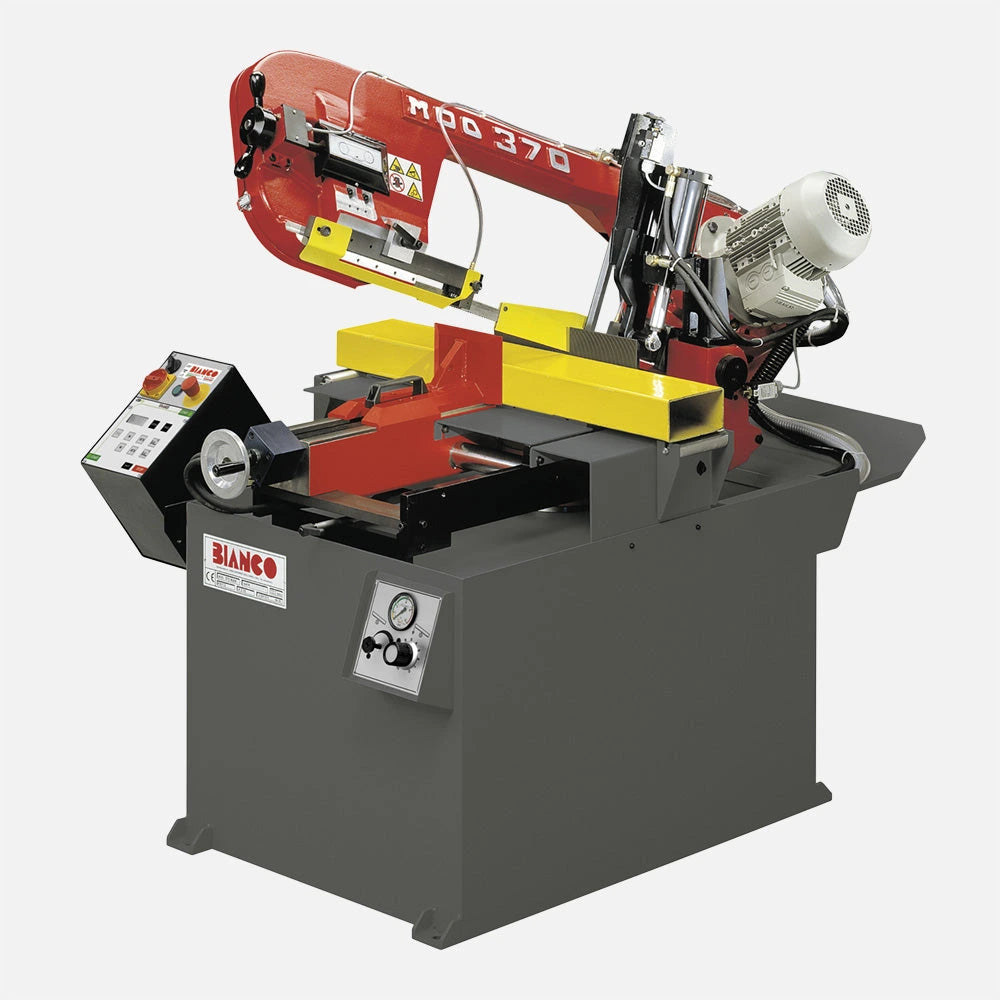

BIANCO 370 SA DS MS BANDSAW MACHINE
SKU:
Semiautomatic band saw machine with cutting capacities up to 60° right and 45° left
Semiautomatic band saw machine equipped with bow and vice movement at hydraulic control, automatic fast up/down bow movement controlled by feeler pin and cutting progress with infinitesimal adjustment. The machine has double safety button for cycle start and low voltage electrical system according to EC rules.
FEATURES
- Sliding vice for an easy and quick placement of the piece to be cut
- Encoder for detected correct angle position and reading out on electronic display
- Cutting capacities up to 60° right and 45° left
- Bow: red RAL 3002, base: gray RAL 7022
AVAILABLE WITH CONTROL HIGH PANEL ''A'' OR LOW PANEL ''B''.
THE OPTIONAL ''I'' (FREQUENCY CONVERTER) CAN BE SUPPLIED ONLY WITH ''A'' PANEL.
THE OPTIONAL ''V'' (BLADE SPEED VARIATOR) CAN BE SUPPLIED ONLY WITH ''B'' PANEL.
STANDARD ACCESSORIES
- Millimetre rule 0-500 mm with mechanical length stop
- Discharge tray
- Encoder + cutting angle digital display
90° mm | 280 | 240 | 350x140 |
45° DX-R mm | 230 | 200 | 230x230 |
45° SX-L mm | 200 | 170 | 220x100 |
60° DX-R mm | 140 | 140 | 140x140 |
Blade | 3120x27x0.9 |
