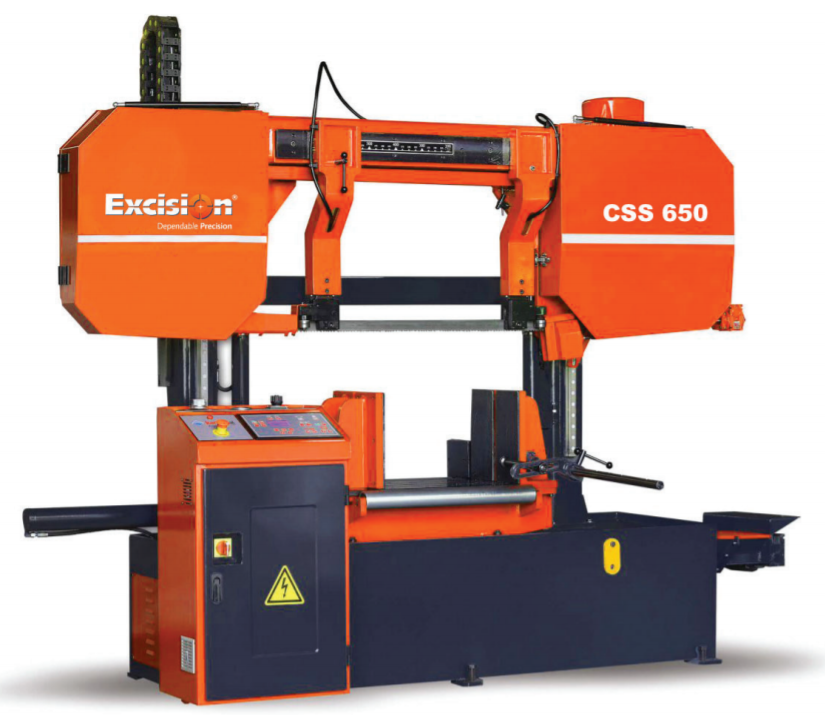

CSS 650 BANDSAW MACHINE
SKU:
Bandsaw Machine Semi-Automatic Double Column

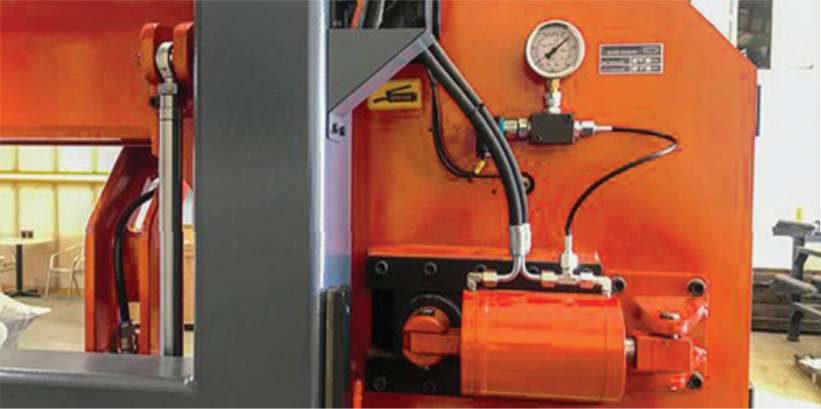

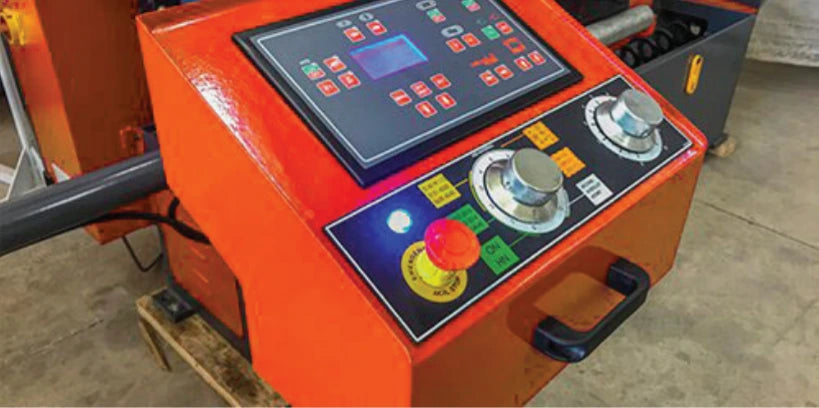

CSS 650 model is a double column semiautomatic bandsaw machine with variable speed. This Machine is designed for straight cutting, precision is guaranteed due to the linear guides. Bow up-down movements are controlled with hydraulic compression. The cut material can be easily tightened thanks to powerful hydraulic vices. This machine includes 2 x 2m infeed / outfeed rollers. The machine is controlled on digital control panel. Hydraulic top clamps can be easily fitted making with machine a great 'pack' cutting saw.
Technical description:
- Main Motor: 5, 5 kW, ~ 1400 rpm
- Hydraulic Motor: 1, 5kW
- Conveyor Motor: 0, 12kW
- Coolant Motor: 0, 2kW
- Blade Speed: 25 - 90 m/min
- Blade Size: 5700 x 41 x 1.3 mm
- Feeding Stroke: -
- Weight: 2250 kg
- Working Height: 700 mm
- Dimensions: 1100 x 3000 x 2100 mm
| Cutting Capacity | |||
|---|---|---|---|
| 0° | 500mm | 500mm | 500 x 650mm |
