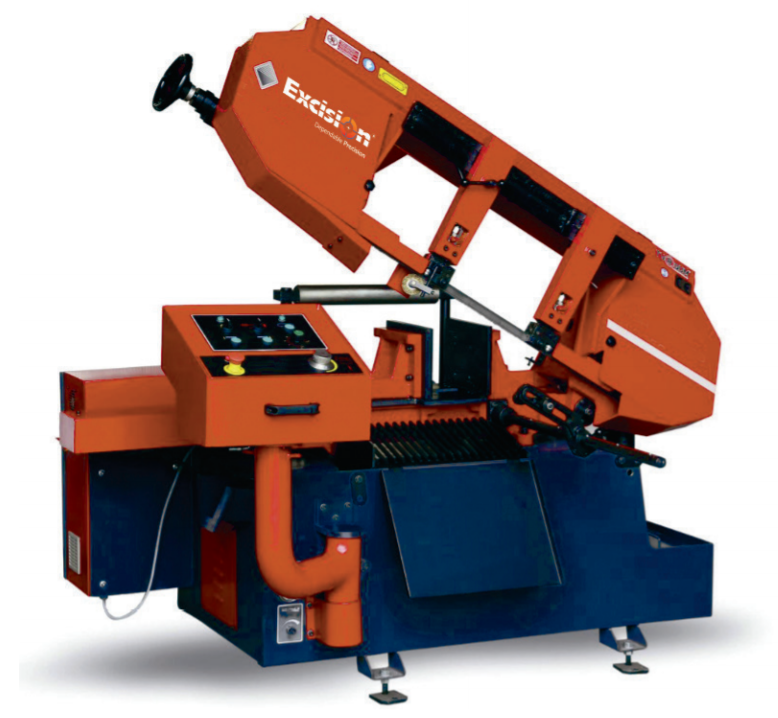

PSS400 BANDSAW MACHINE
SKU:
Bandsaw Machine Horizontal Semi Auto
PSS400 model is a semi automatic bandsaw machine which has been designed for accurate straight cutting. Precision cutting capability has been gained with carbide guides and ability to achieve high tension on the blade. The bow up and down movements are controlled by a hydraulic system. The cut material can be easily tightened thanks to hydraulic vice. Feeding material is manual.
FEATURES:
- Hydramechanical Blade Tensioning
- Bevel Helical Gearbox
- Swarf Brush
- Moveable Control Panel
- Hydraulic Vise
- Blade Bedding with Carbide and Bearings
- Moveable Guide Arms
- 600mm Material Stopper System
Technical Specification:
- Main Motor: 2.2kw
- Hydraulic Motor: 0.37kw
- Conveyor Motor: 0.2kw
- Coolant Motor: 0.9kw
- Blade Speed: 25-90m/min
- Blade Size: 3850 x 27 x 0.9mm
- Weight: 900kg
- Working Hieght: 750mm
- Dimensions: 1050 x 1900 x 1300mm
| Cutting Capacity | |||
|---|---|---|---|
| 0° | 300mm | 280mm | 280 X 400mm |
