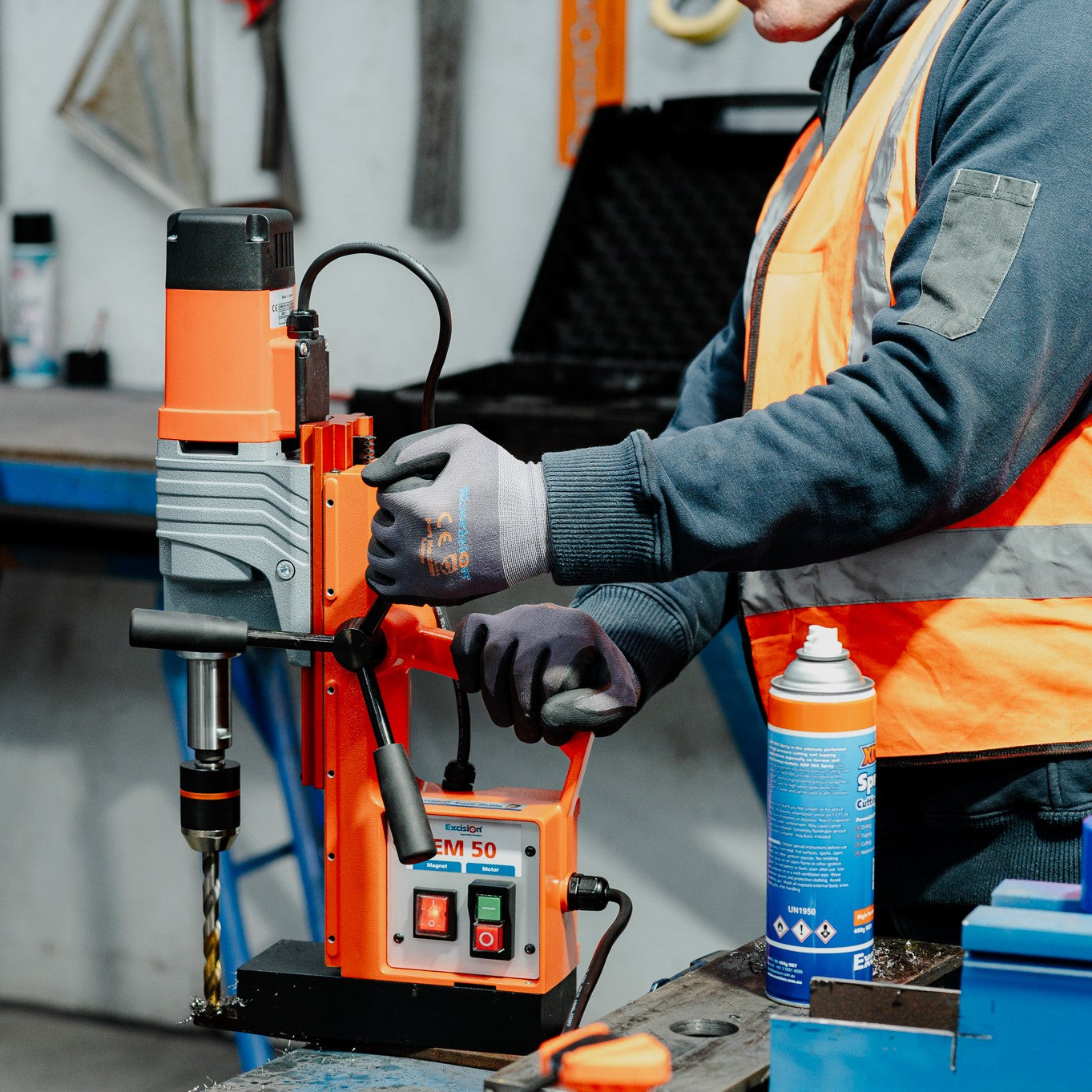

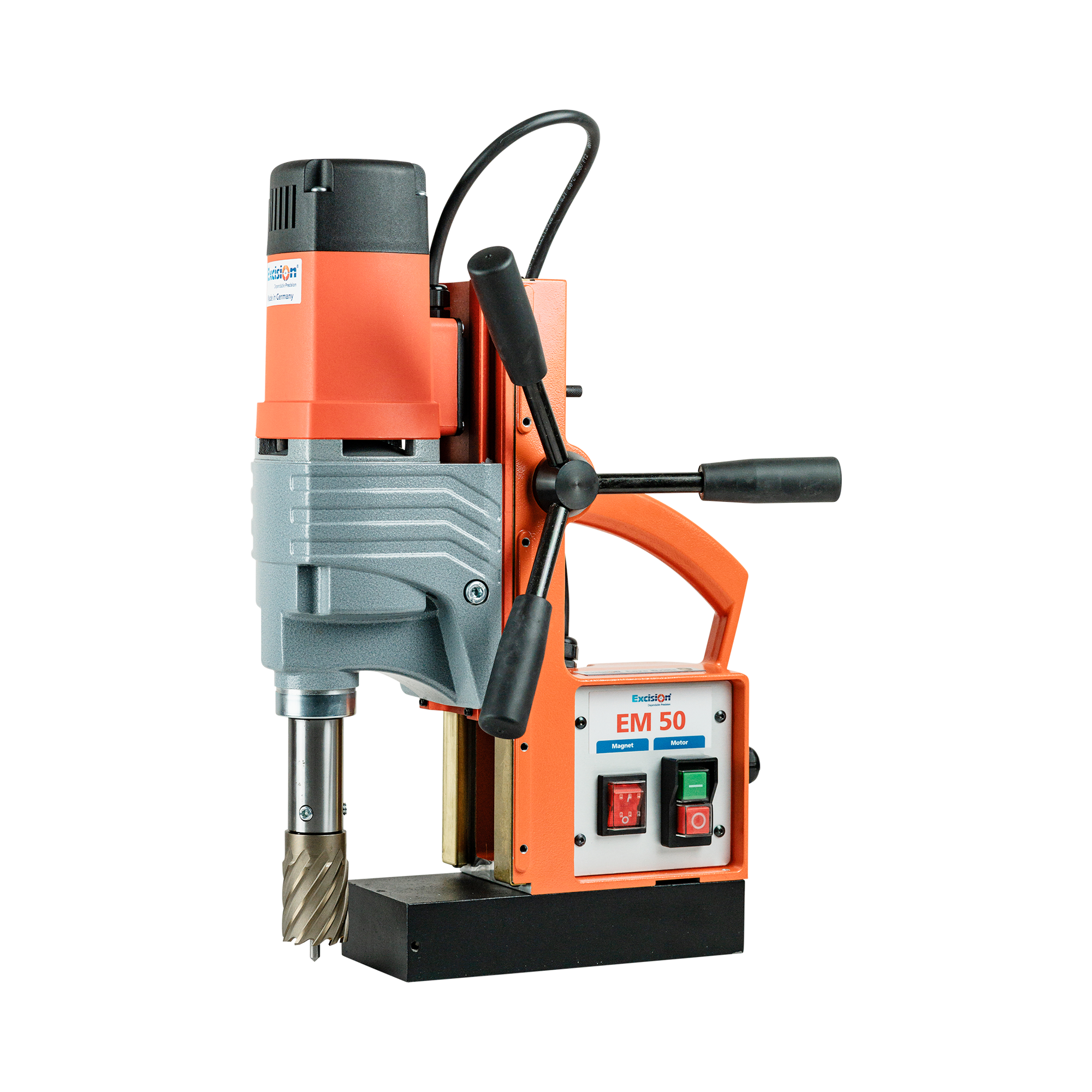

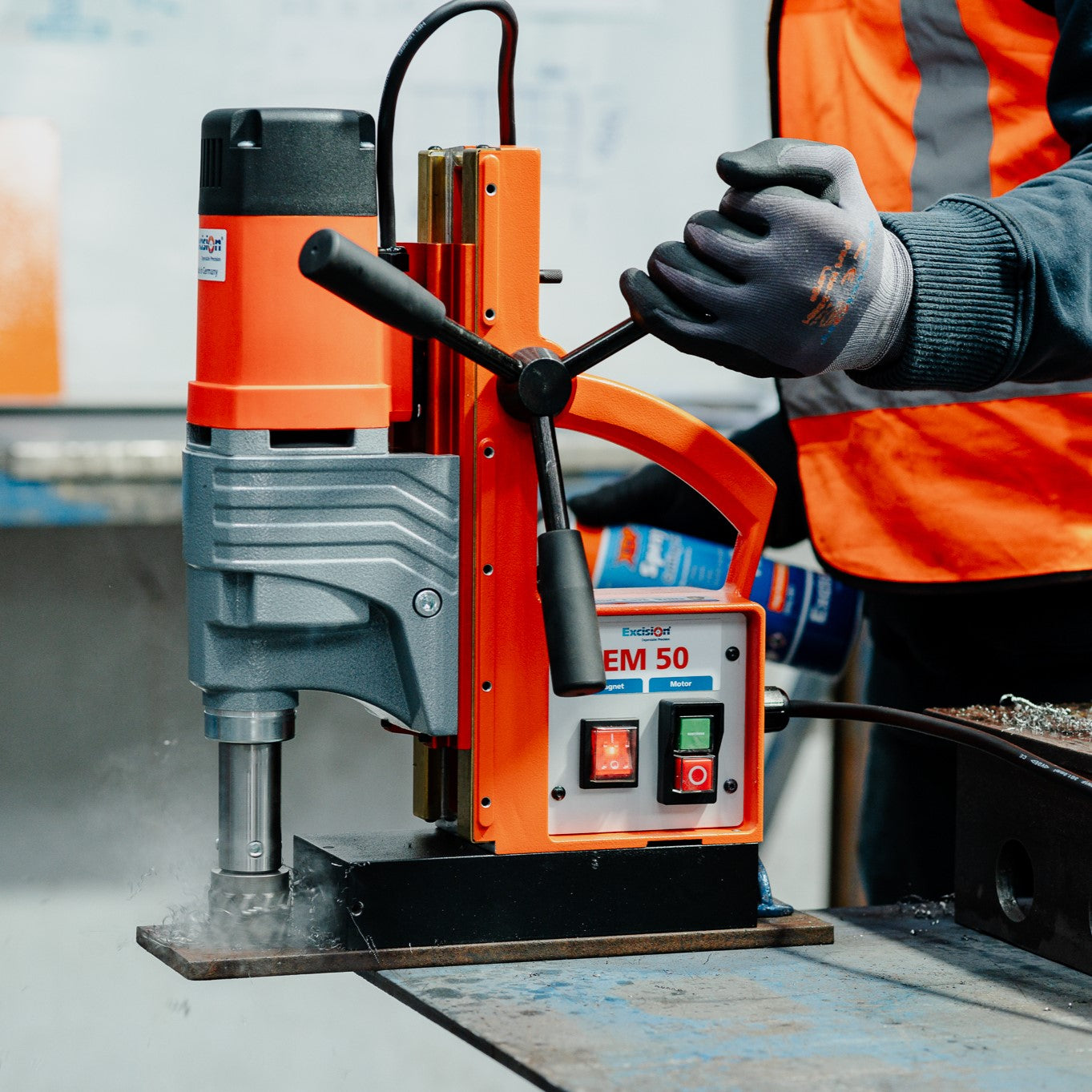

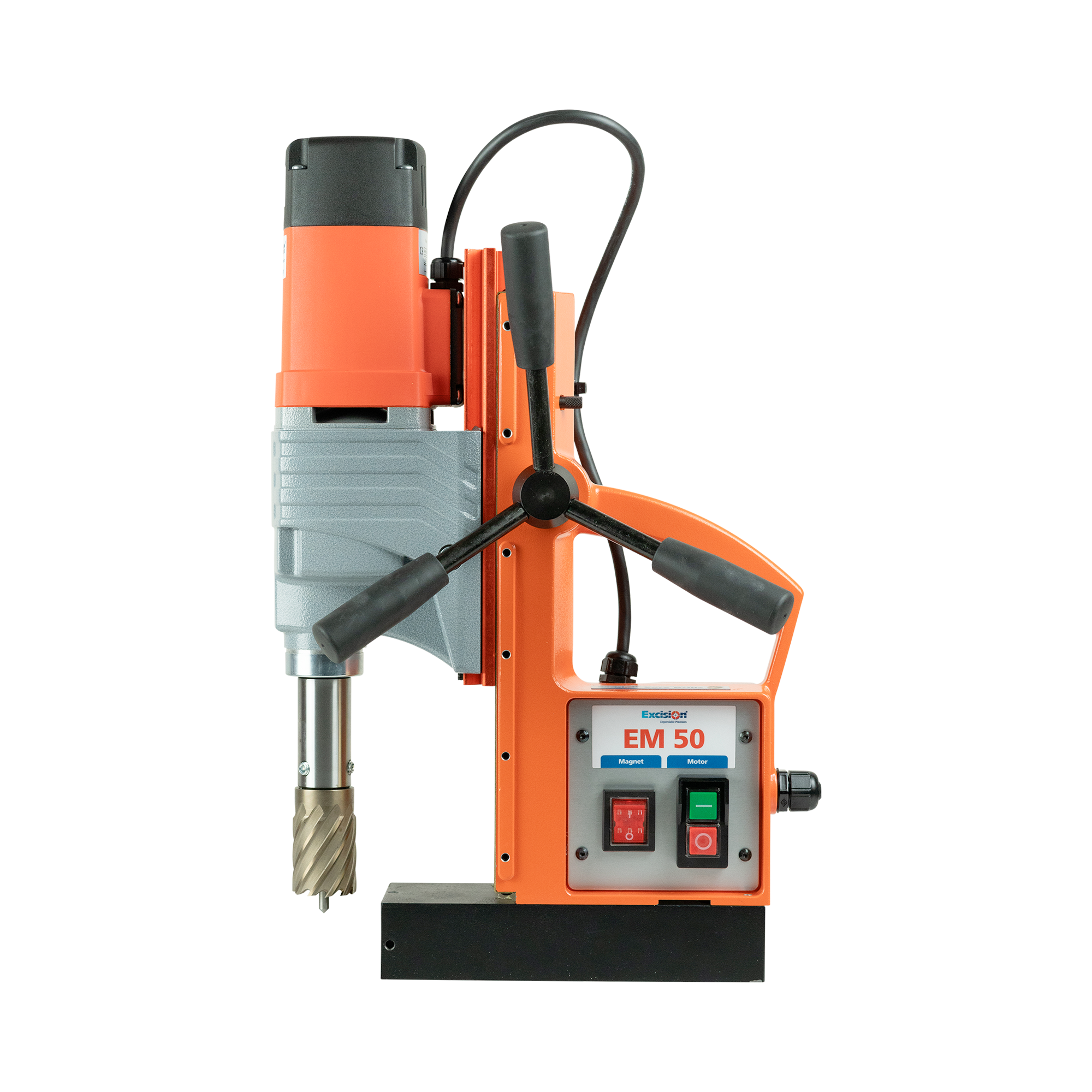

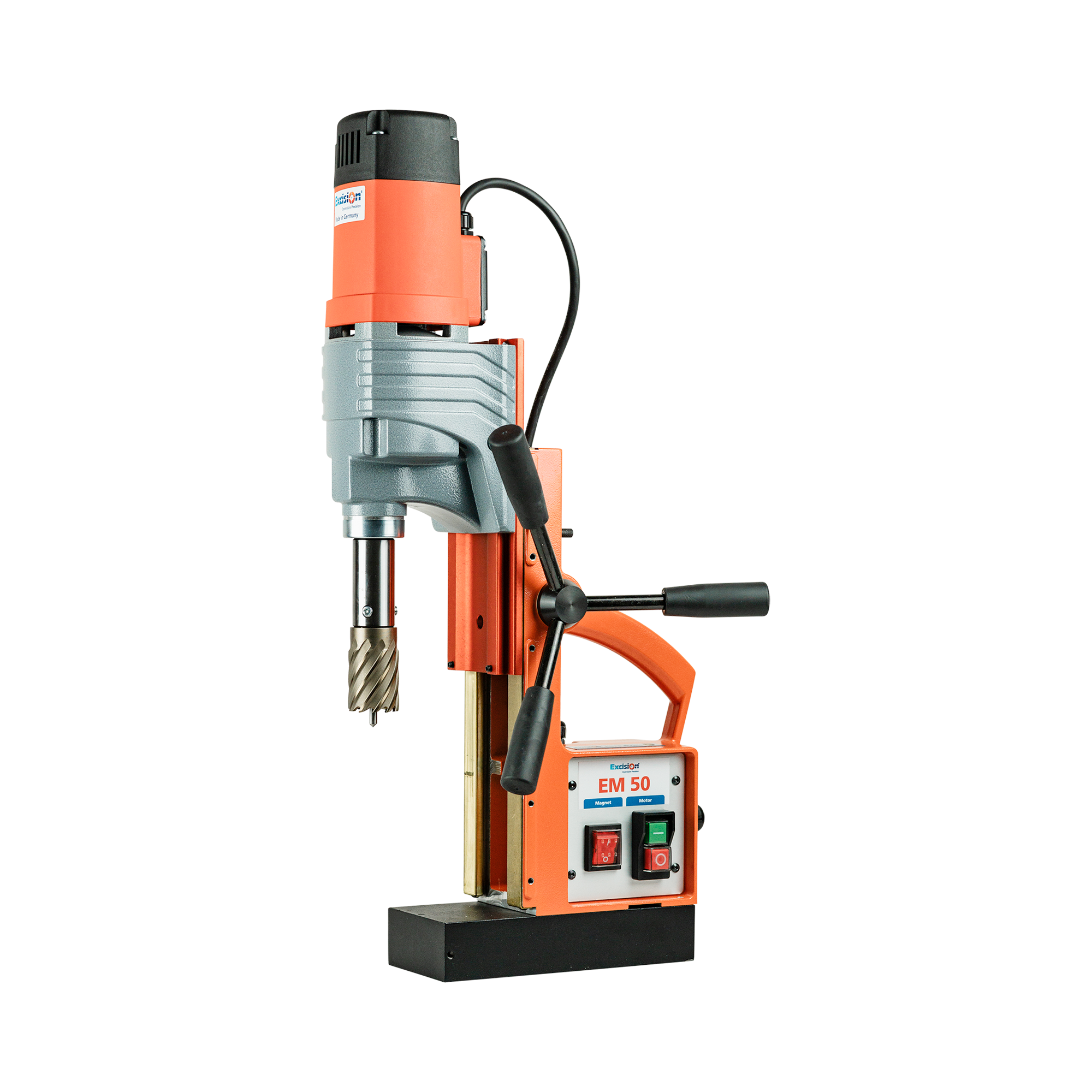

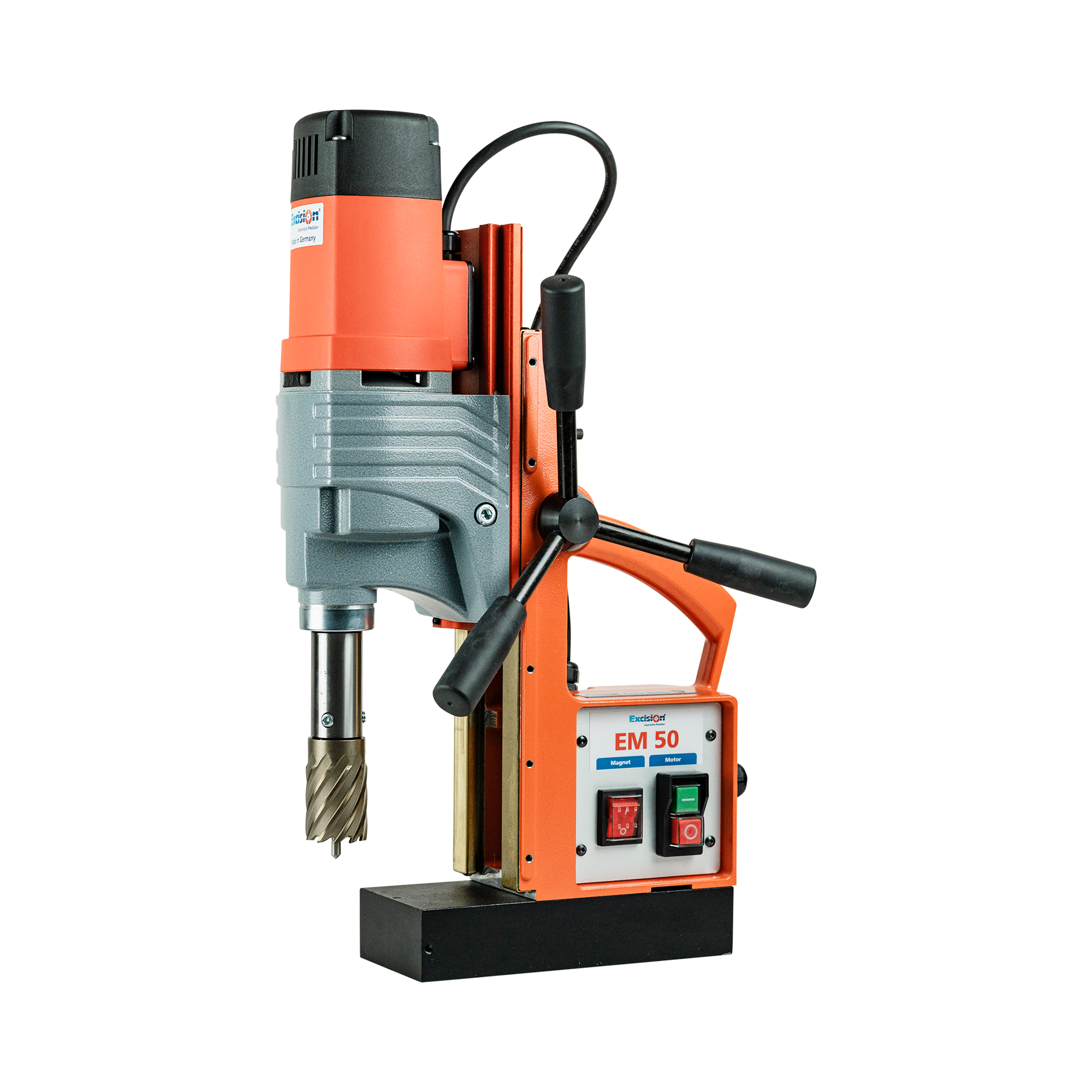

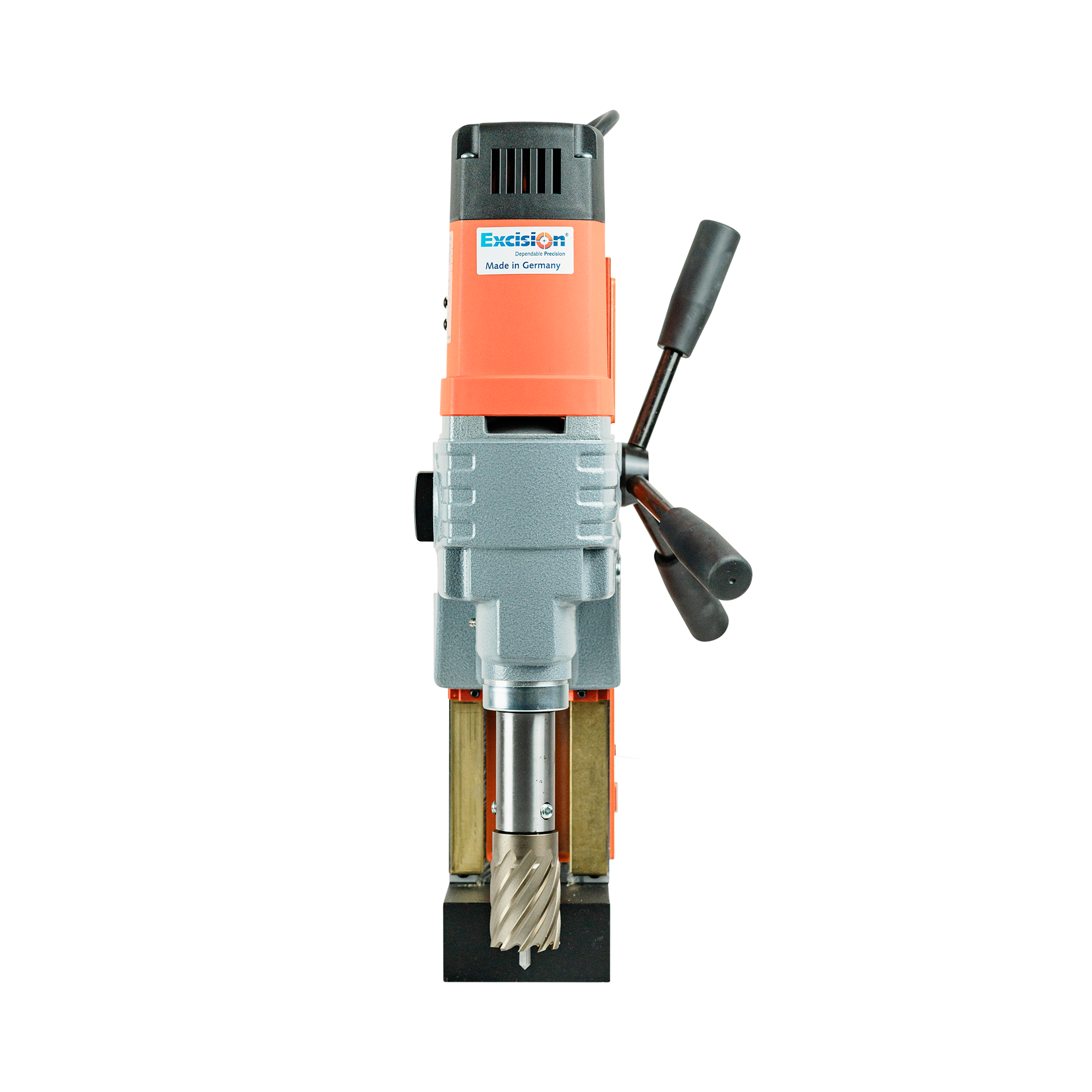

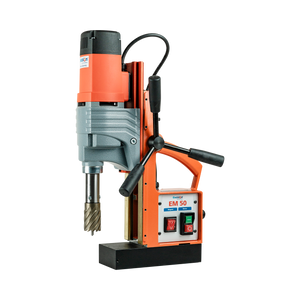

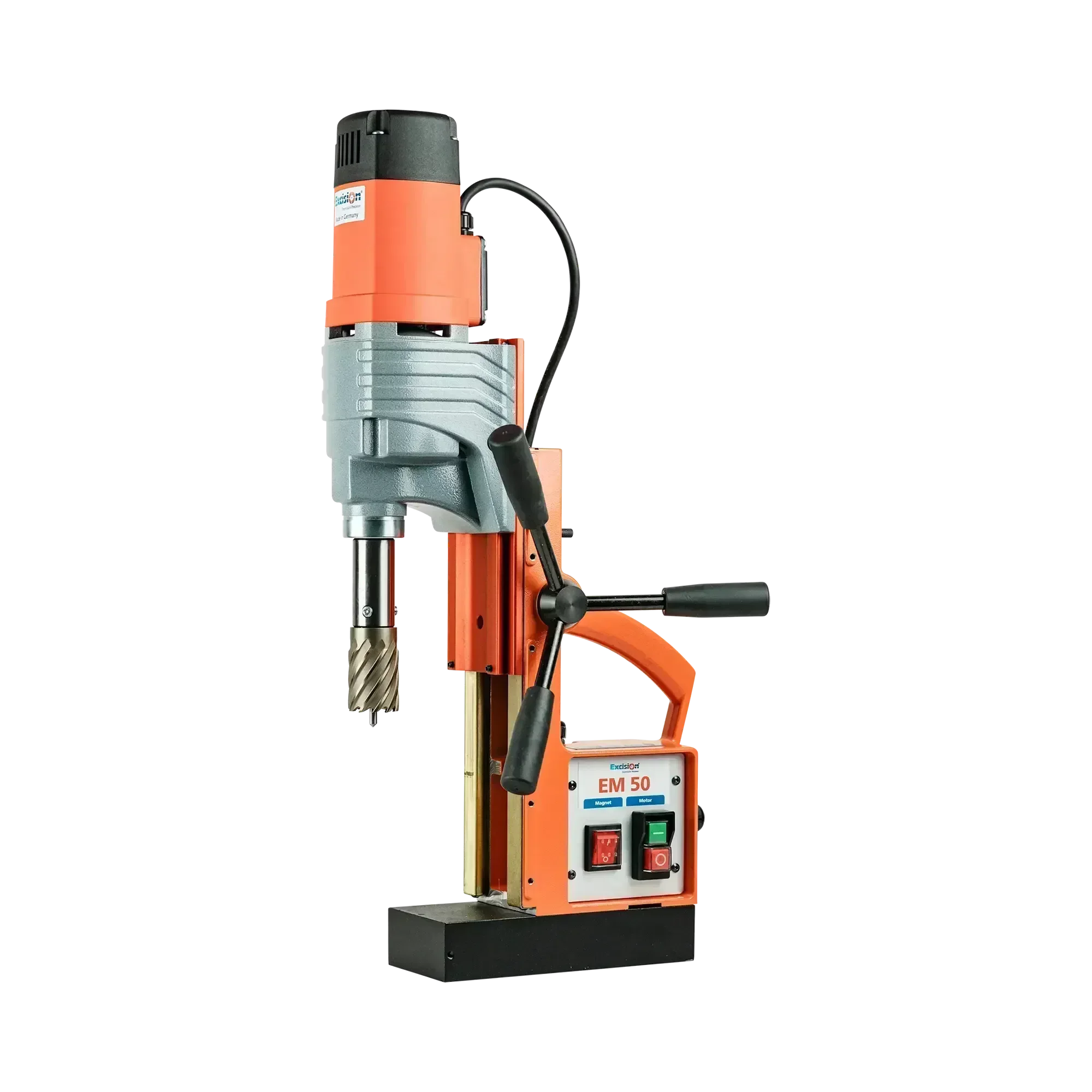

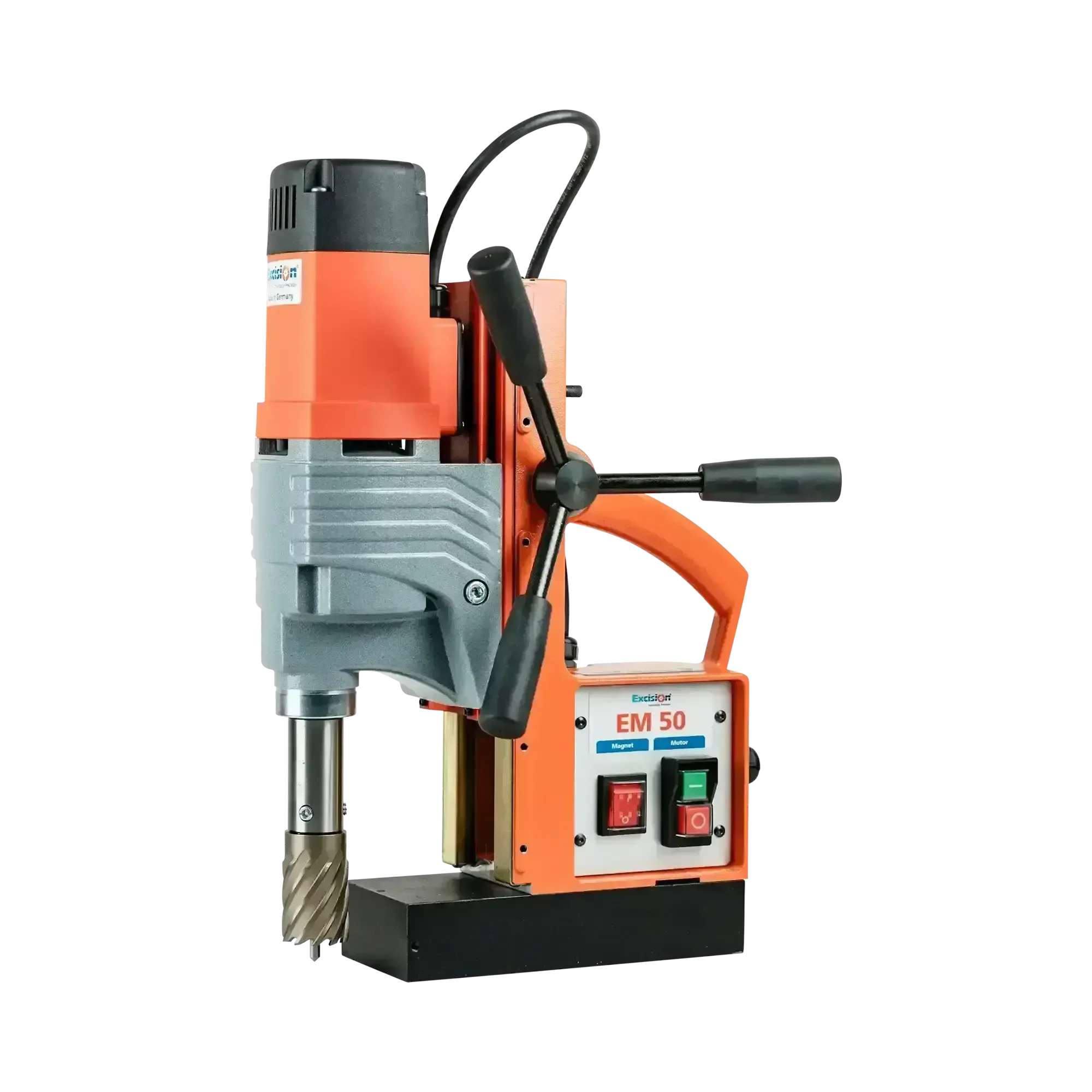

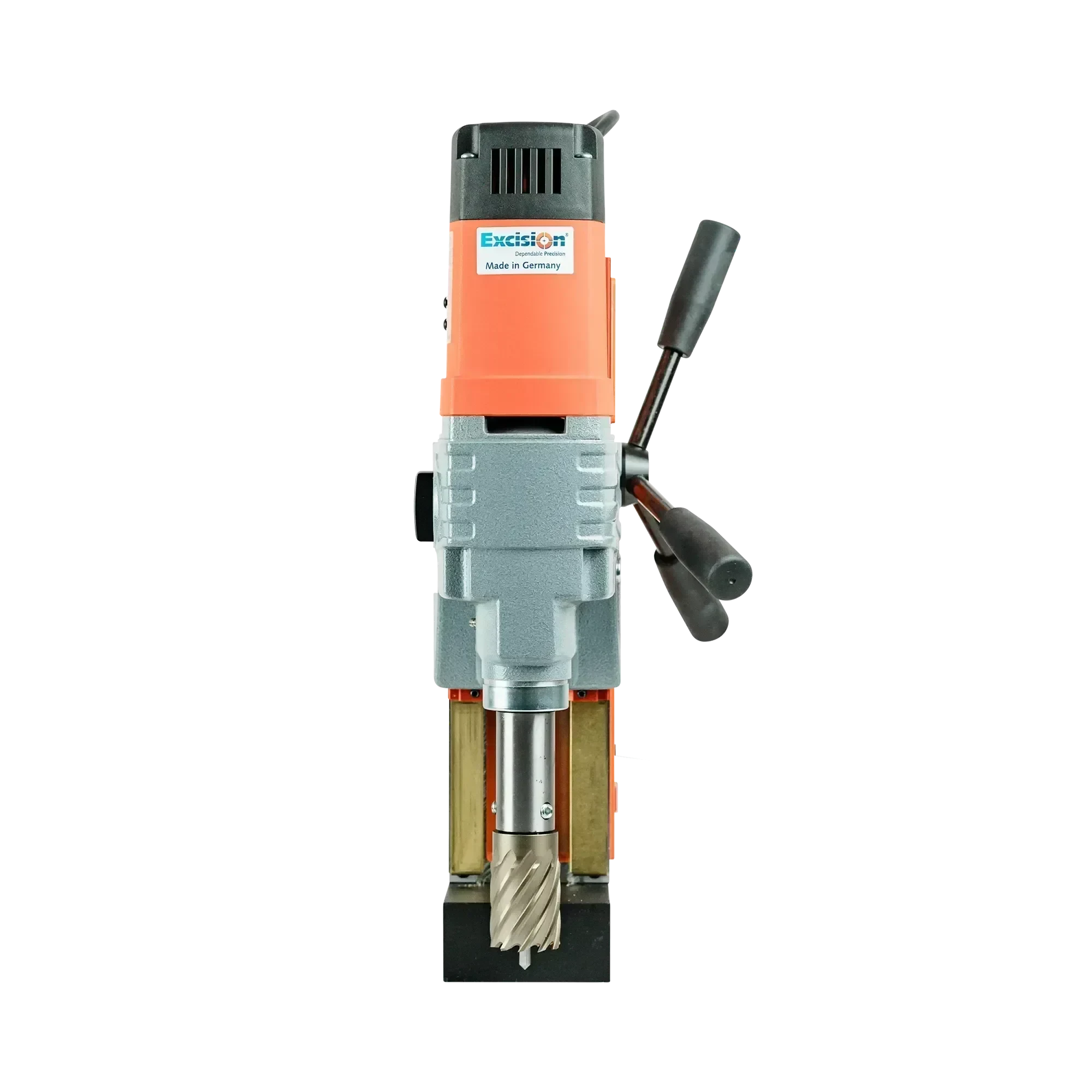

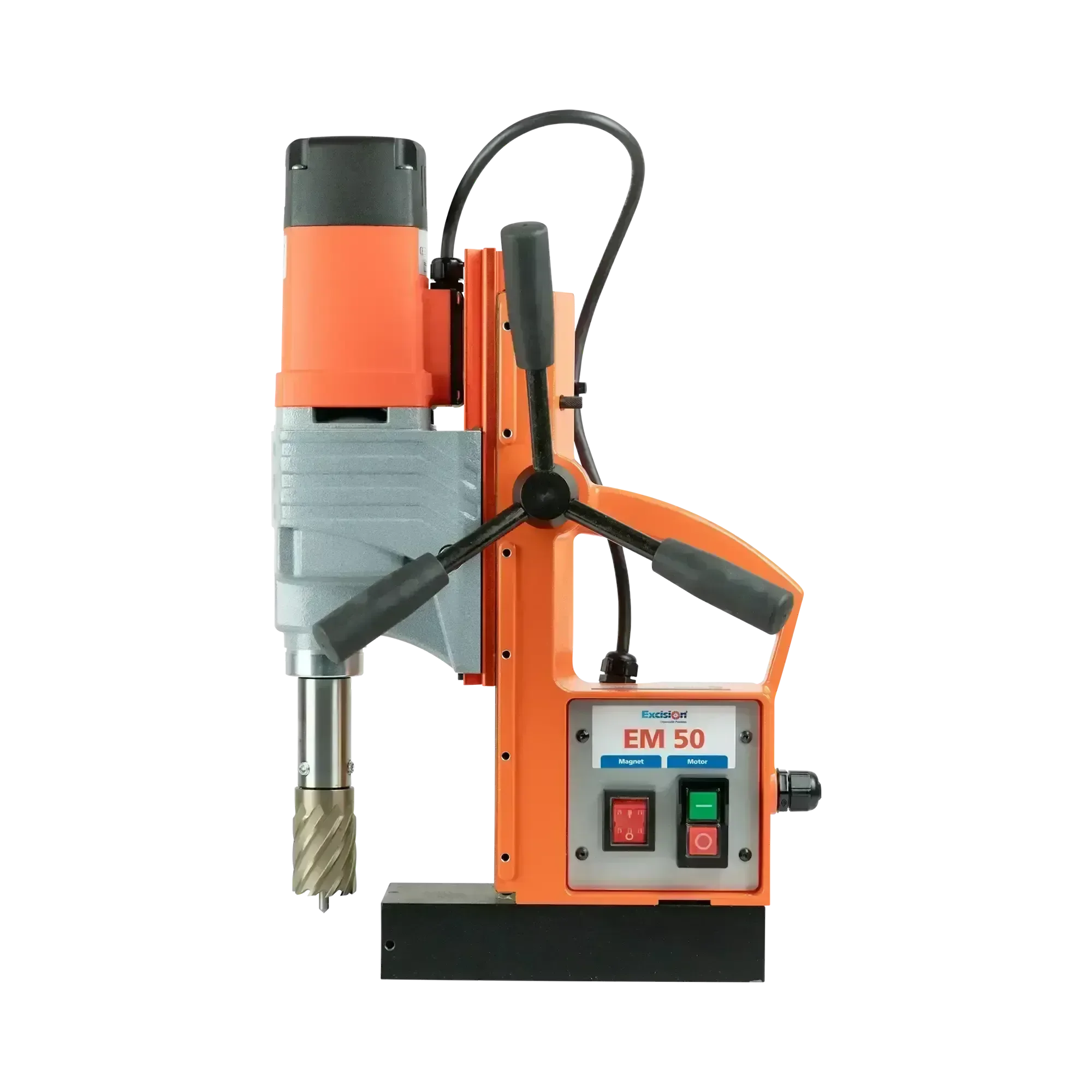

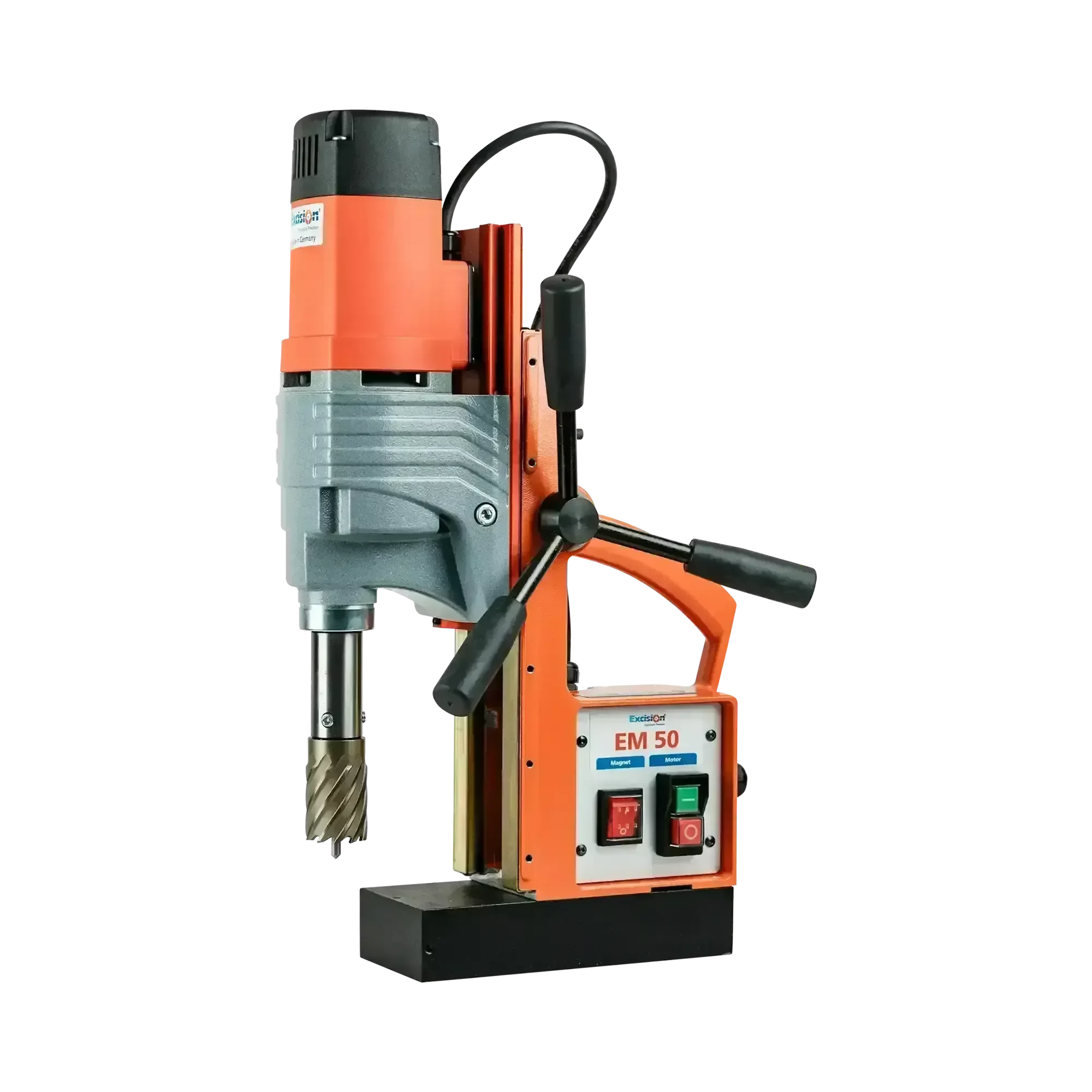

EM50 Magnetic Drill
Made in Germany
SKU: 18510
The EM50 is the 2 speed industrial workhorse magnetic based drill of Excision's range. The EM50 allows for a large range of application through the double height adjustment, and direct weldon type arbor.
- 2 Coil 12,000N Magnetic adhesion for industrial use

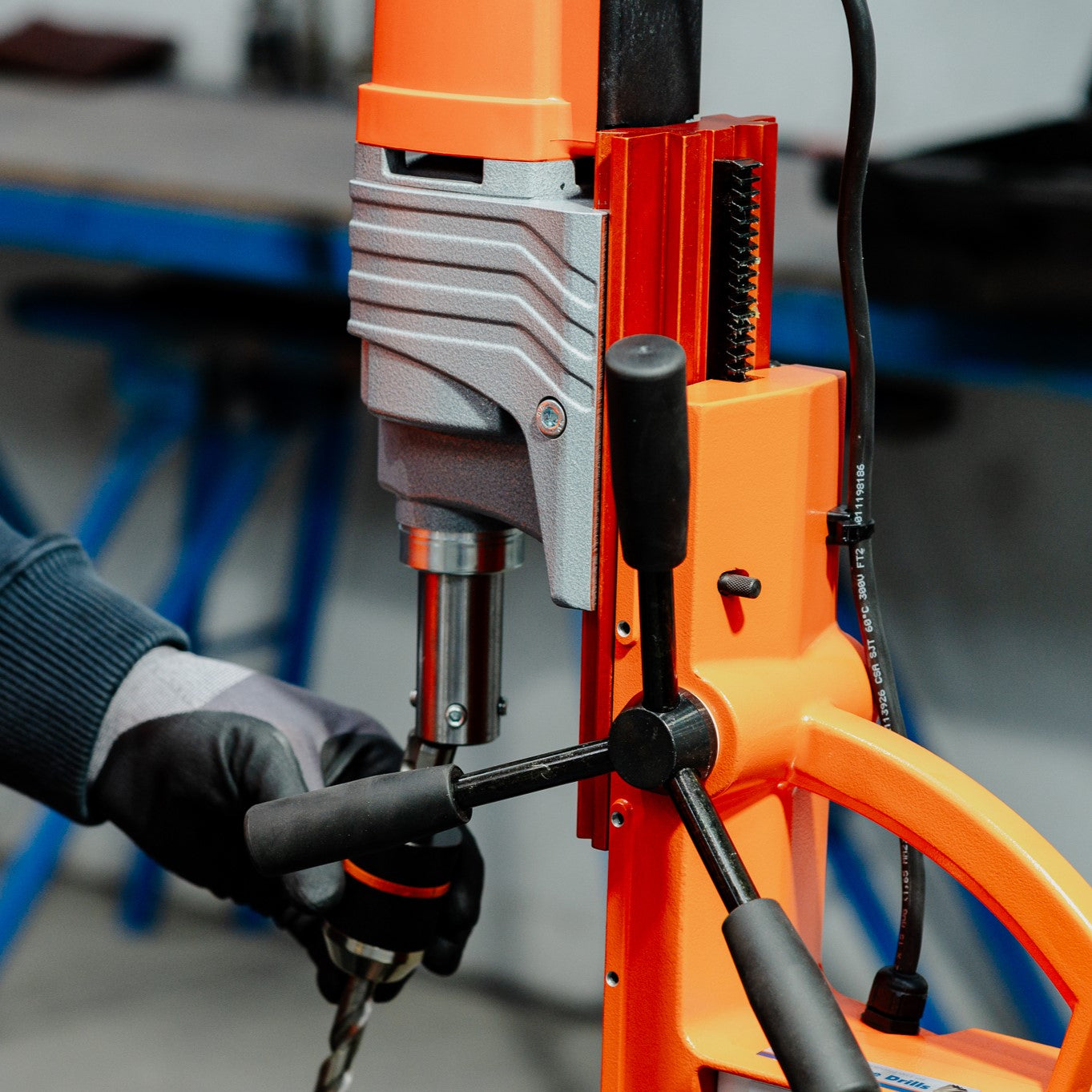

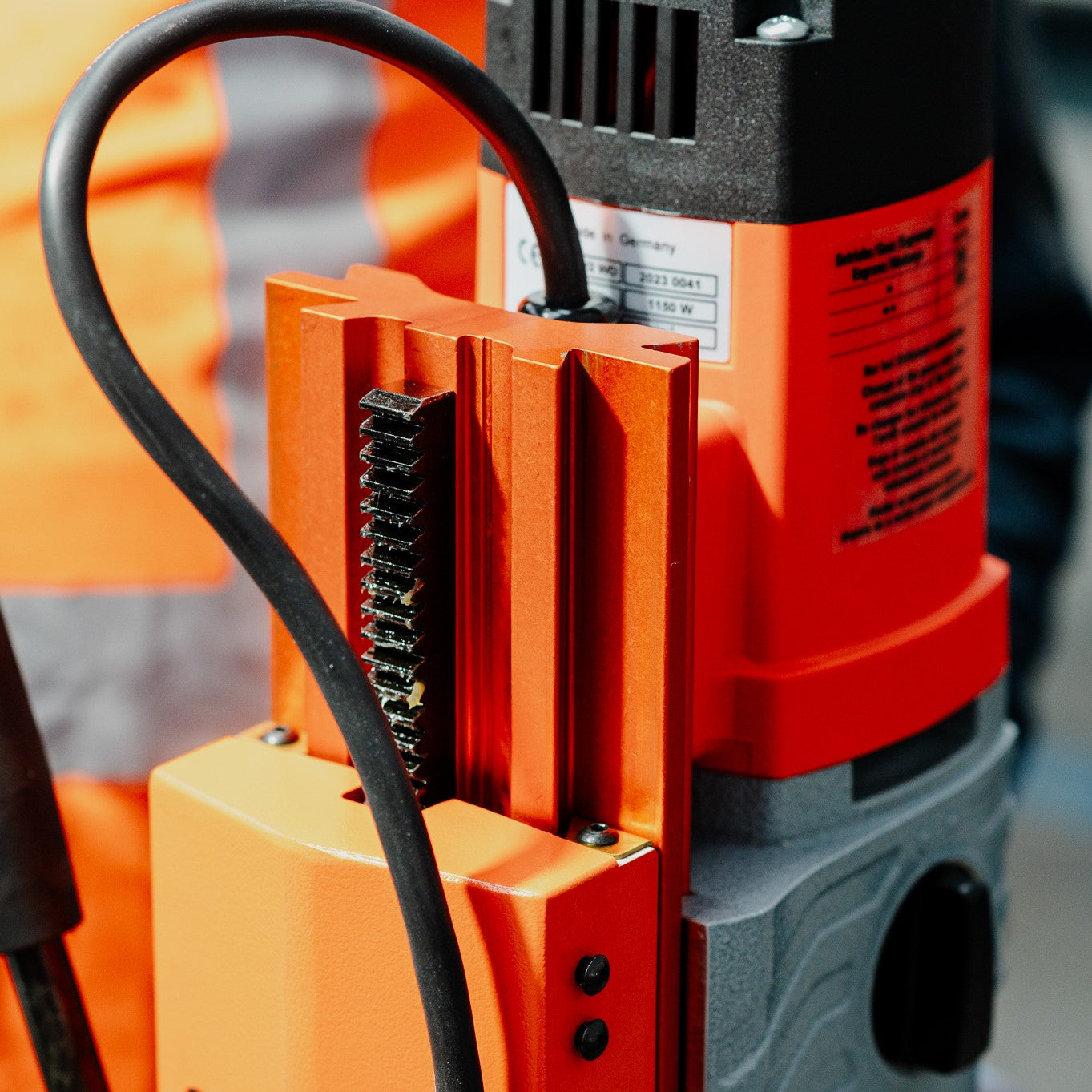

- Spring loaded guides for rigid gliding and reduced vibration
- Height adjustable slide enables an increased range of applications including standard twist drills
- Smart start feature protects the motor to increase longevity

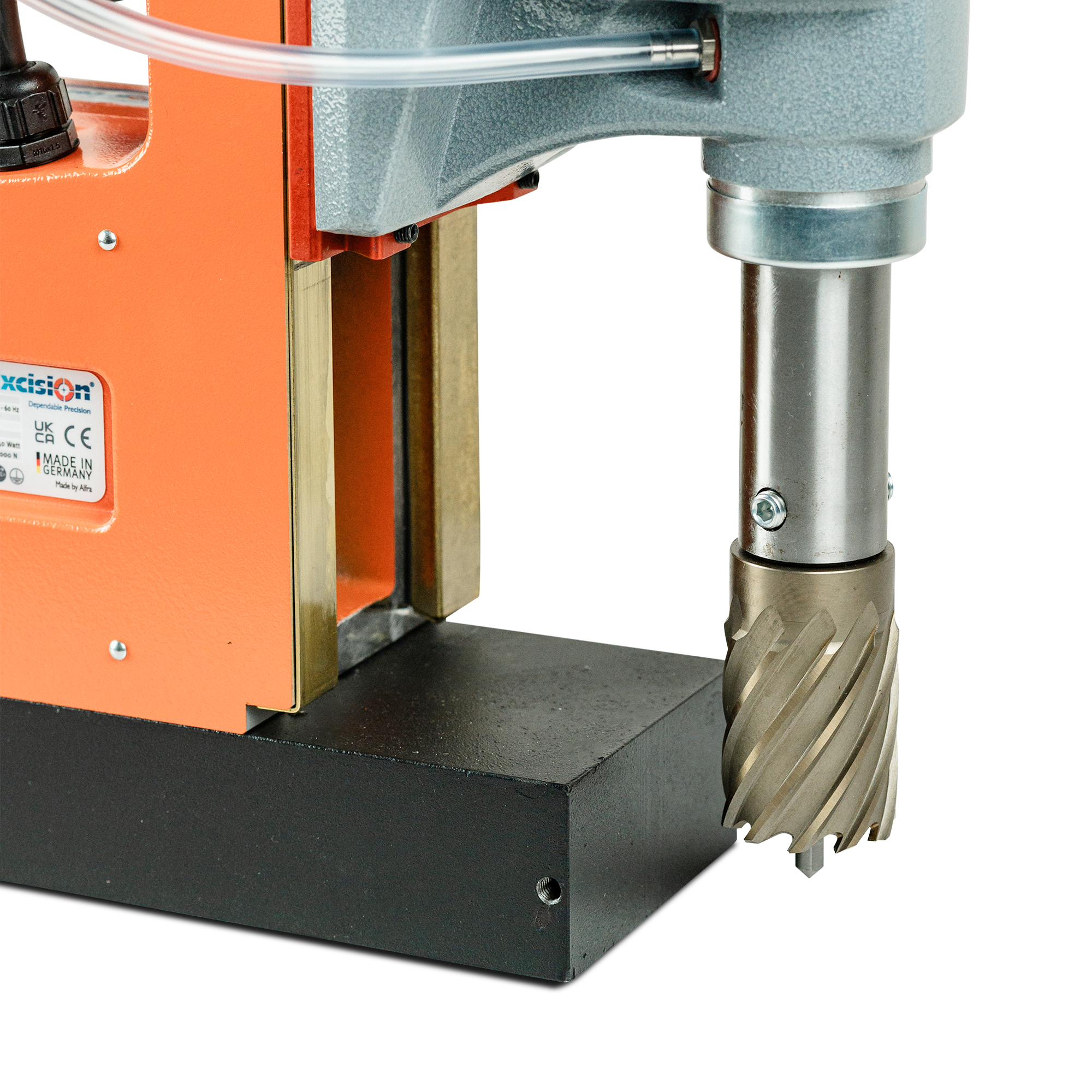

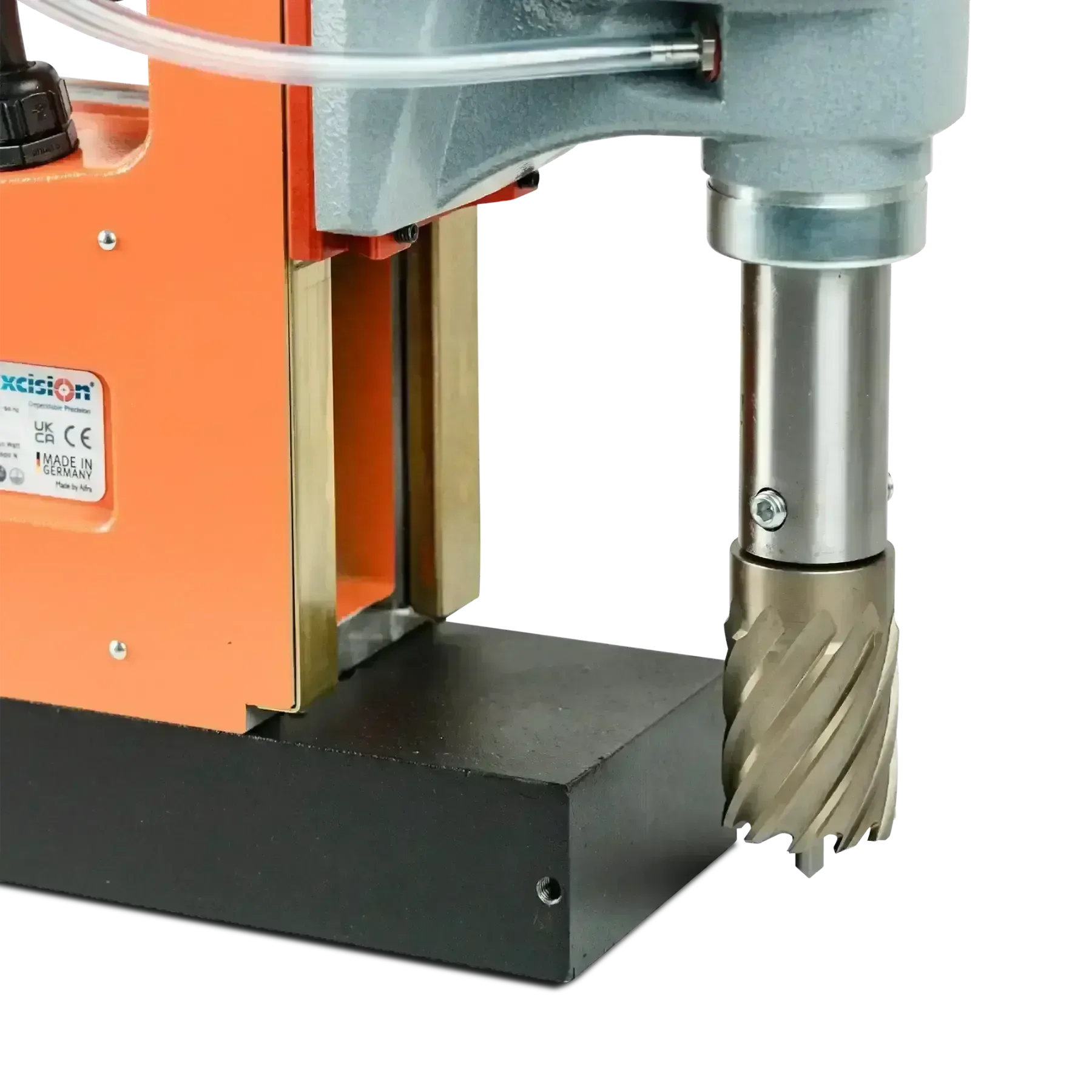

- Direct Weldon arbor type spindle for use with all 19mm shank core drills

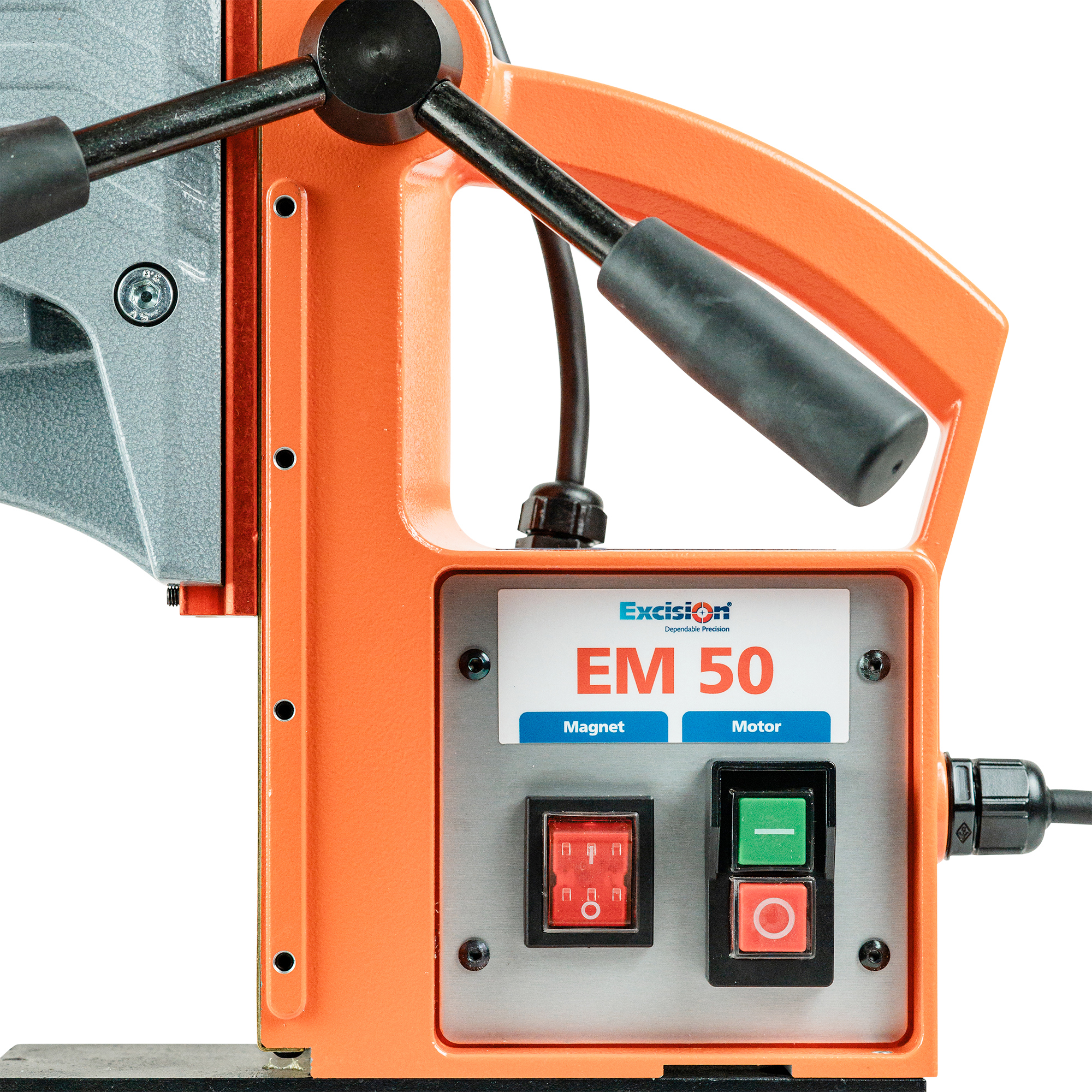

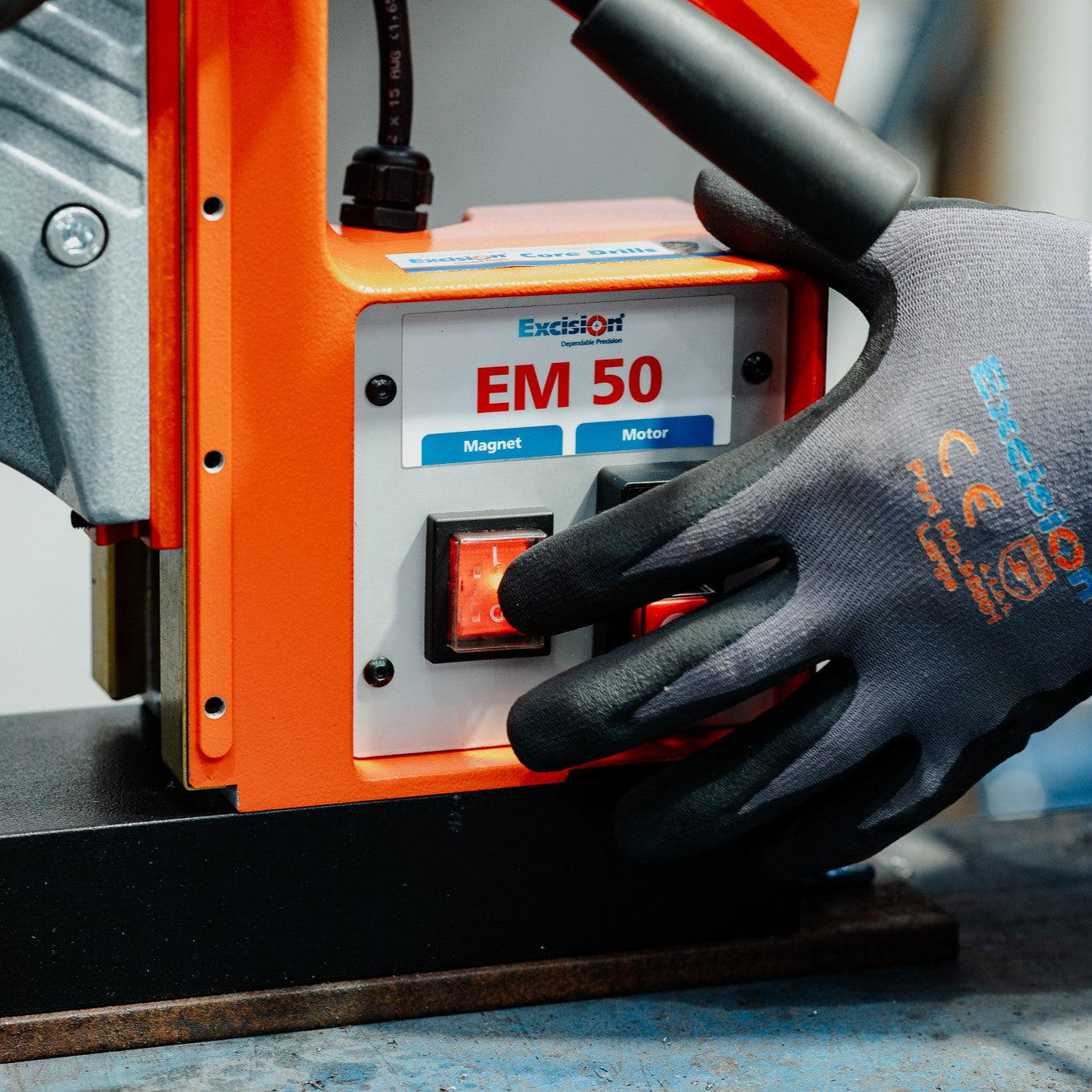

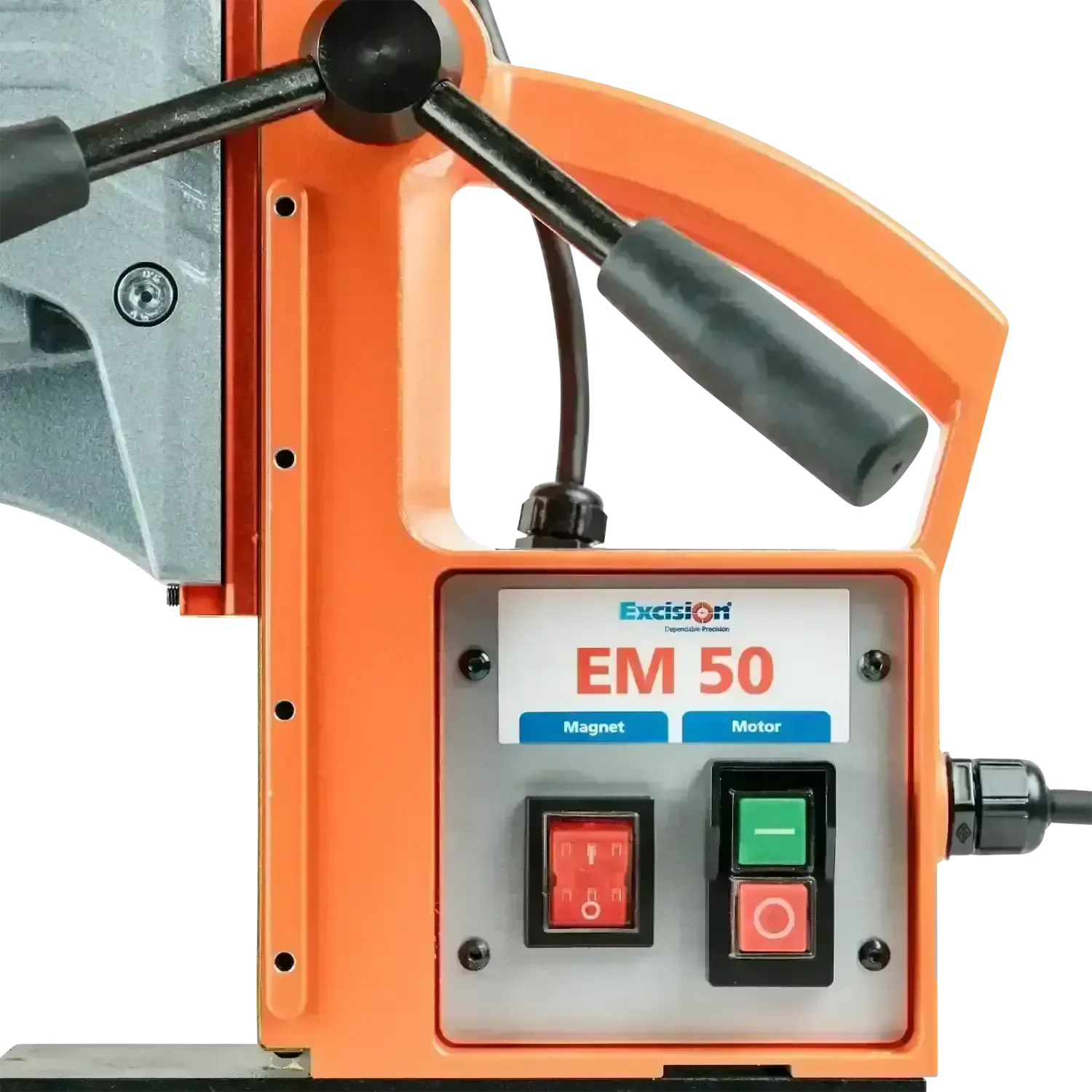

- Durable touch pad for ergonomic use
- Hybrid relays to protect circuit board from voltage spikes

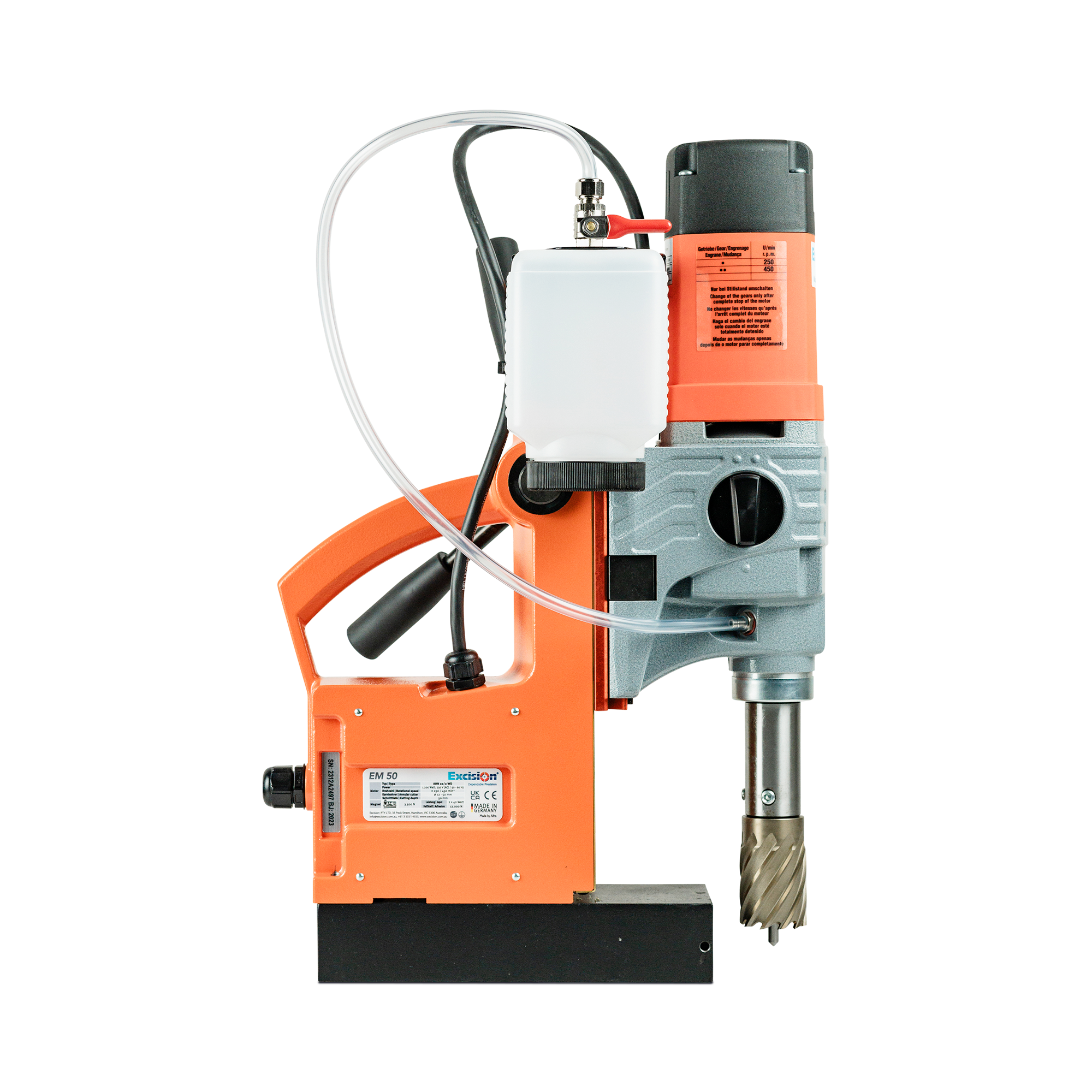

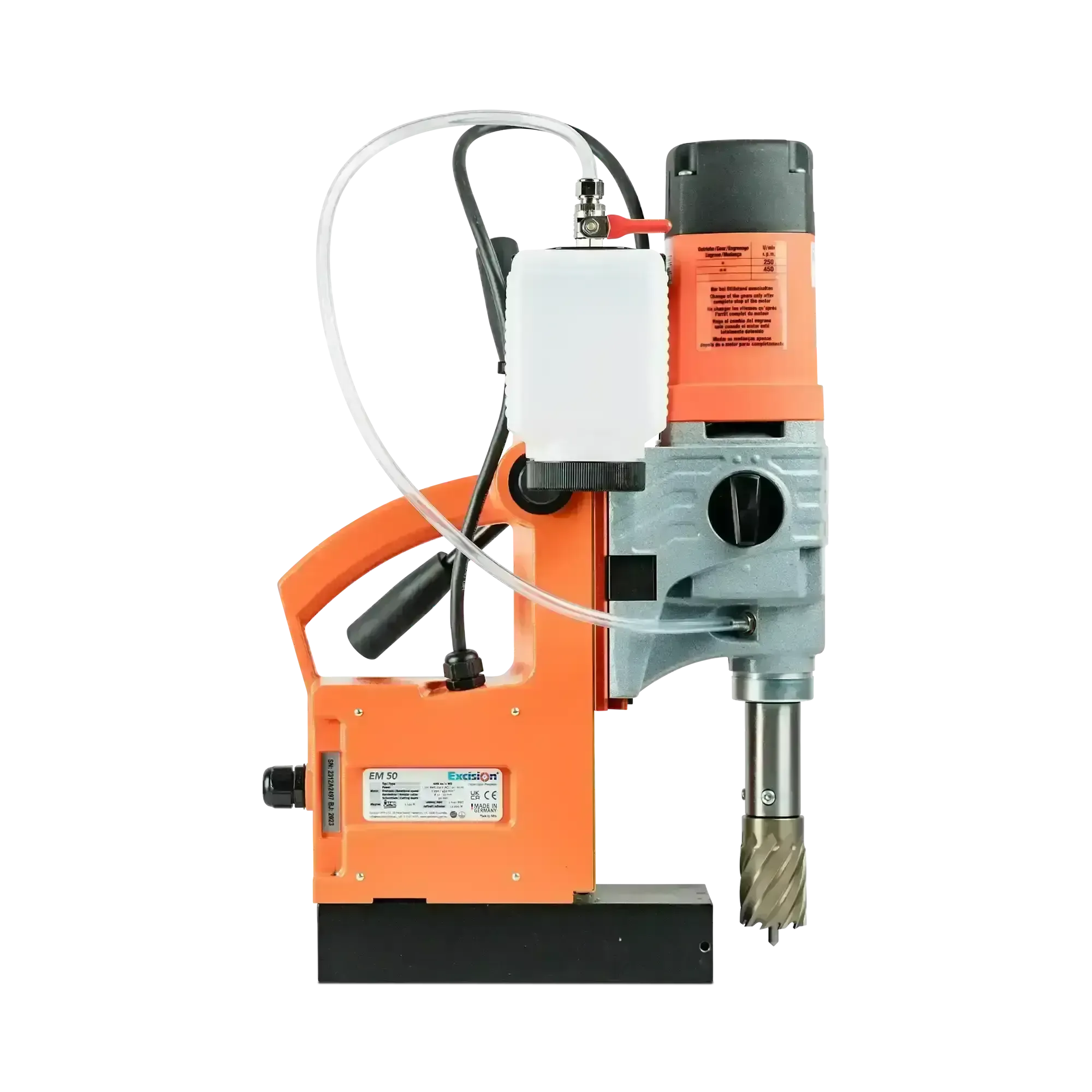

- Integrated coolant system to increase the life of your core drills
| Drill Features and Specifications | |
| Core Drill Dimensions | 12.0-50.0mm |
| Cutting Depth | 50.omm |
| Twist Drill |
1.0-16.0mm with quick-release chuck |
| Counter-Boring |
10.0-40.0mm |
| Tapping |
With tapping attachment: Up to M3-M20 |
| Arbors |
19mm Weldon |
| Stroke |
190mm |
| Height Adjustment |
100mm |
| 4-Speed Gearbox |
1. Step 250rpm 2. Step 450rpm
|
| Power Consumption |
1,500W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
3,500N/12,000N |
| Magnetic Base |
92×220mm |
| Weight |
15.0Kg |
